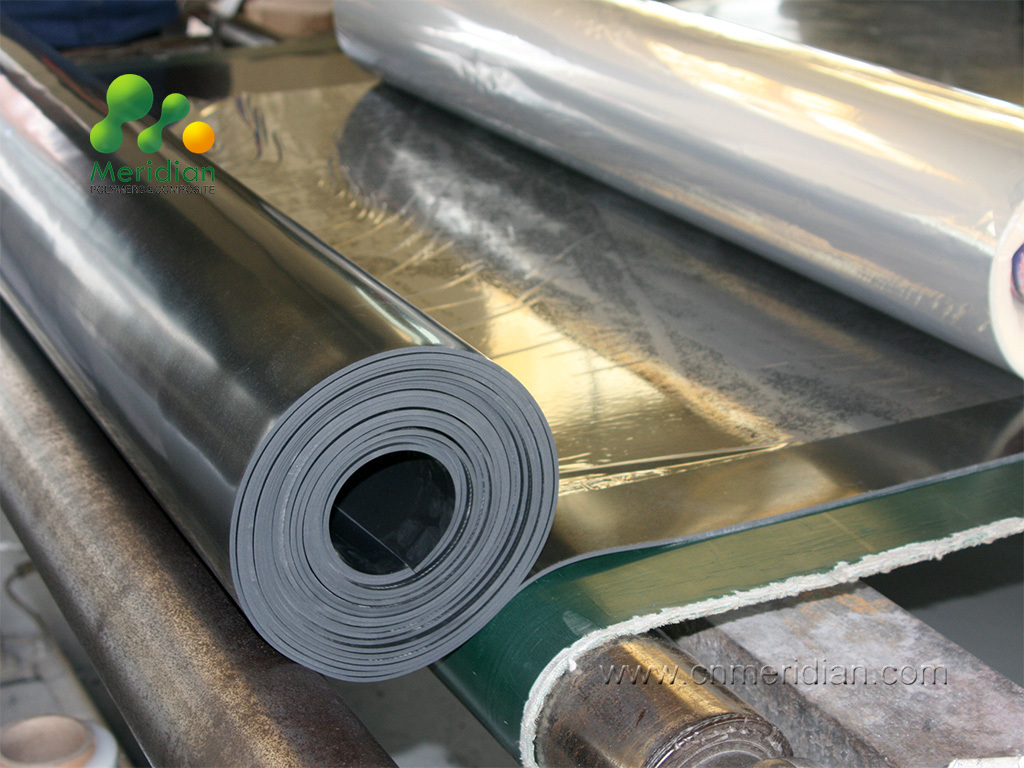

22MP Peroxide Cure Viton / FKM Rubber sheets

Peroxide FKM-18M rubber sheeting affords high strength and exceptional resistance to media, improved resistance in aromatic hydrocarbons, alcohols, inlcuding methanol, water, steam, and acids especially resistance to superheated steam.

Description

Peroxide FKM-22M rubber sheeting affords high strength and exceptional resistance to media, improved resistance in aromatic hydrocarbons, alcohols, inlcuding methanol, water, steam, and acids especially resistance to superheated steam. Peroxide FKM rubber sheeting are especially recommended for fabrication into gaskets, seals, joints and other parts for use where severe operating conditions prevail with superheated steam. They are widely used in heavy industries such as oil and gas field, oil and petroleum refineries, steel works, chemical plants, mines and also in industries with special requirements.

We can provide you three grade peroxide FKM rubber sheeting normally,

Peroxide FKM 18 rubber sheeting
Peroxide FKM 22 rubber sheeting
VITON GF-600S rubber sheeting

Technical Specification

Type	ITEM No.	Color	Specific	Hardness	Tensile	Elongation	TEARING STRENGTH (KN/m)	Temperature
			Gravity	(shore A)	Strength	at Break		Range
			(g/cm³)		(Mpa)	(%)		(°C)
PEOFKM	75B/18M	Black	2.0±0.05	75±5	>18	>300	>48	-30~250
PEOFKM	75B/22M	Black	2.0±0.05	75±5	>22	>300	>52	-30~250

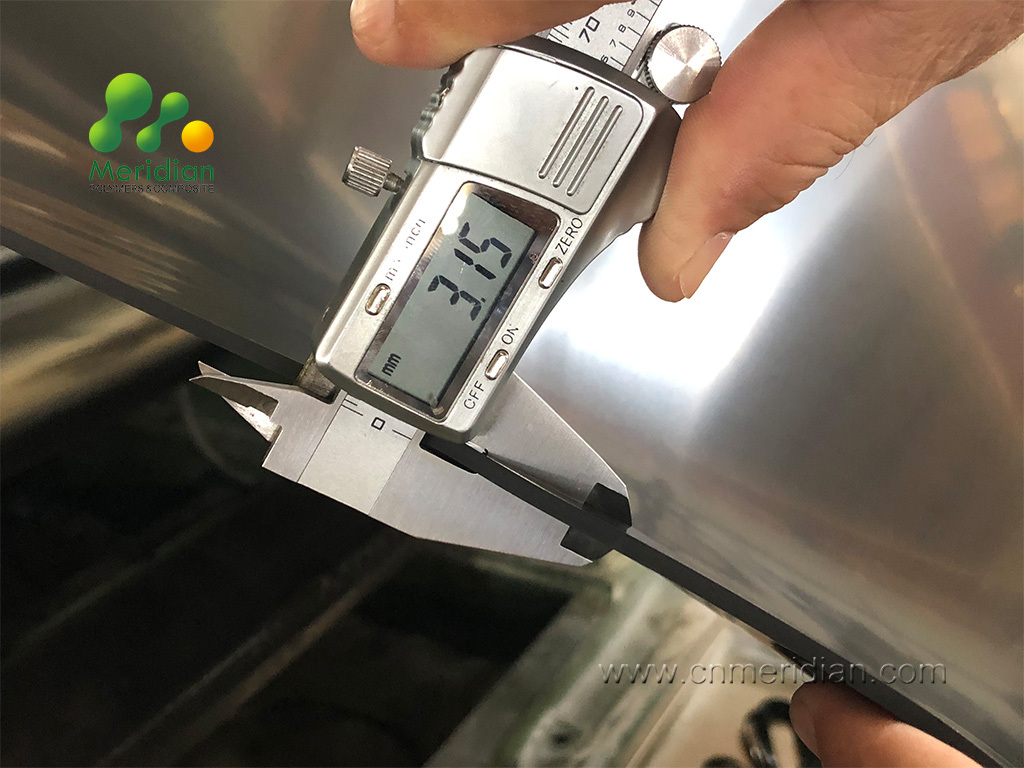

Available in thicknesses: 1mm to 25mm
1mm to 6mm - Rolls: 1000mm -1200mm-2000mm wide x 10-20 meters long
8mm & 10mm – Rolls: 1000mm-1200mm wide x 5-10 meters long
Over 10mm thickness-Plates : 2500mm x 1000-2000 mm
OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST

All the Fluorous rubber products have “REACH”, “PAHS”, “CA Prop 65” certificate, certified by SGS, Intertek Corporation.

Information of a technical nature is based on laboratory tests which either Meridian conducts or sends to an independent laboratory for testing for determination of uses as requested in writing by customer. Meridian believes these to be reliable. However, Meridian has no control over the application of the material to, or part of, the final product and therefore, Meridian makes no express or implied warranty of result, fitness or merchantability. The customer should determine reliability for the end use or particular application.
