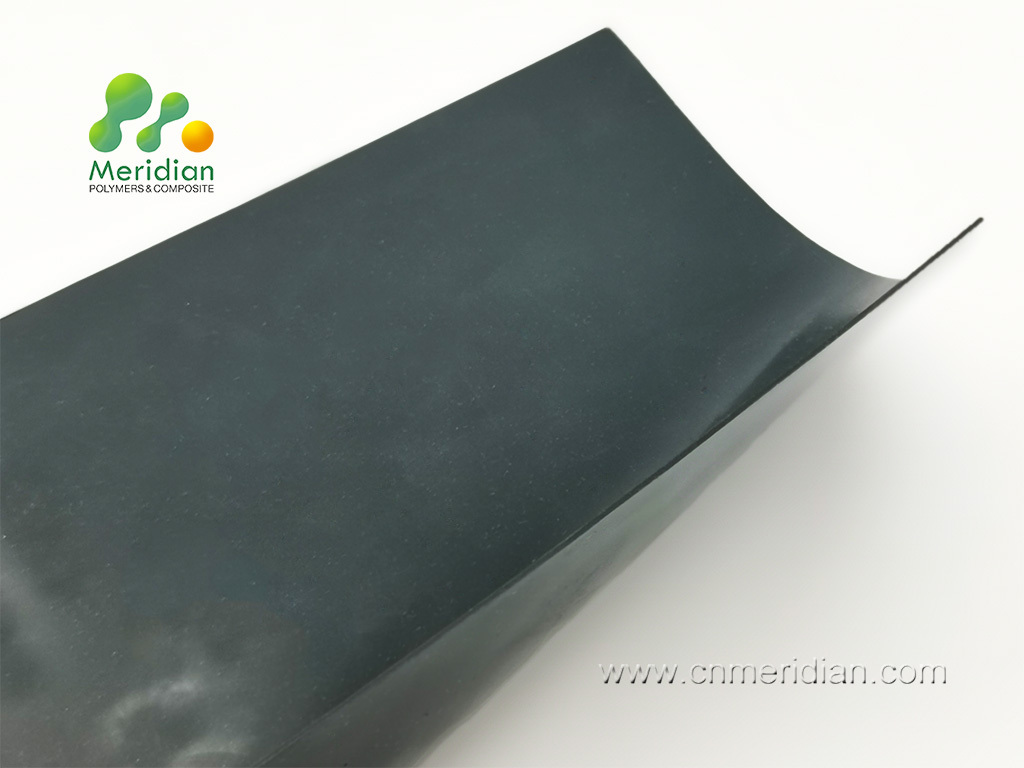

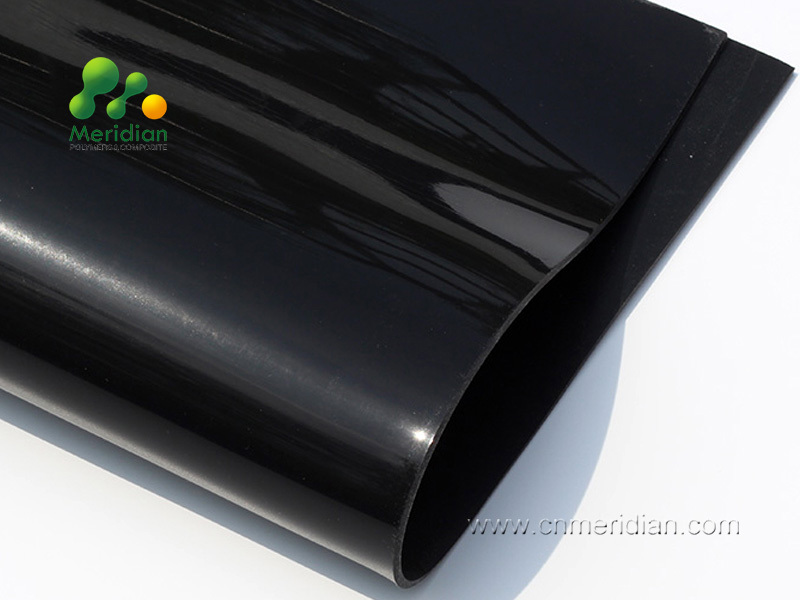

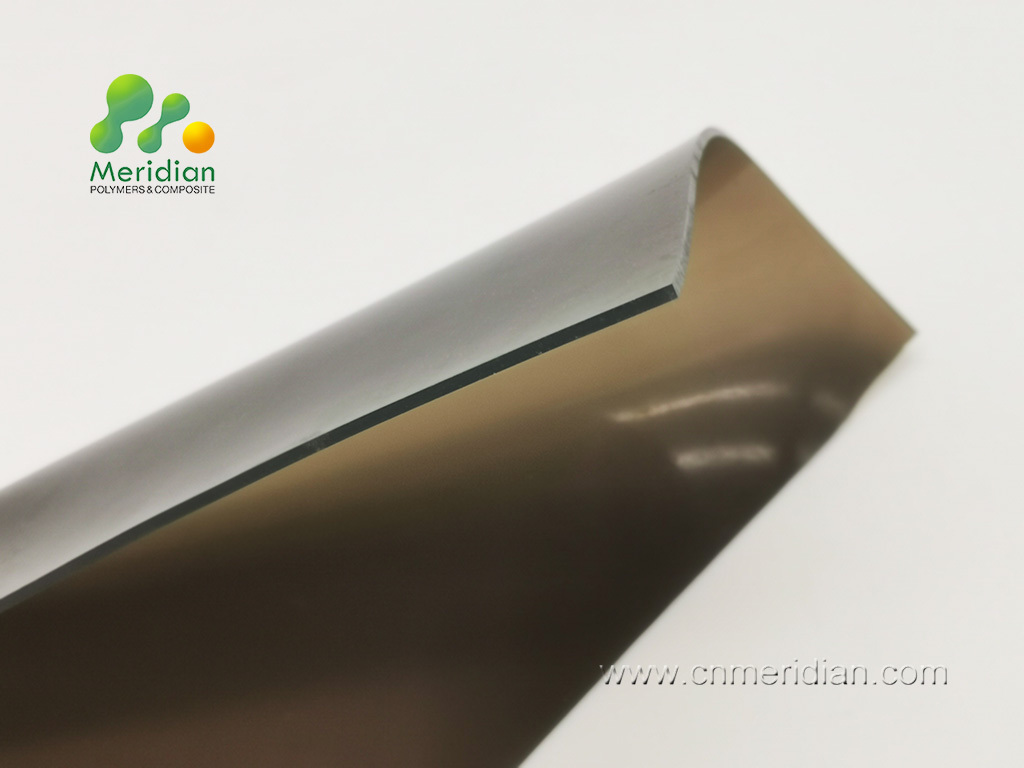

Conductive silicone is made by adding conductive carbon, silver, nickel, silvered glass, silvered aluminum, graphite or other conductive materials to the silicone to make the silicone conductive and without losing the characteristics of elastomers, high temperature resistance, and chemical resistance. By adjusting the formula, we can also provide semiconductor silicone plate.
Applications
Electromagnetic shielding or systems that need to balance high potential gradients in high voltage systems, acts as a low amperage conductor in RMI/EFI gaskets, electronics and other applications provide EMI immunity and watertight sealing in narrow structures, can also be used for EMP protection, Waveguide Applications and ESD Protection.
Characteristic
Conductivity: Conductive silicone rubber sheets are an excellent choice for applications requiring conductivity, such as electromagnetic shielding, electrostatic discharge, and grounding.
Flexibility: The flexible nature of silicone rubber means that conductive silicone rubber sheets can be easily molded or formed.
Durability: Silicone rubber is known for its durability and resistance to extreme temperatures, UV radiation and harsh chemicals. This makes conductive silicone rubber sheets suitable for a wide range of industrial and commercial applications.
Cost-effective: Conductive silicone rubber sheets are often more cost-effective than other conductive materials, making them a popular choice for budget-conscious applications.
EASY TO USE: Conductive silicone rubber sheets are easy to cut, shape and glue.
Technical Specification
| Type |
No. |
Color |
Specific |
Hardness |
Tensile Strength |
Elongation |
TEARING |
Temperature |
Thickness (mm) |
Width (m) |
| Gravity (g/cm3) |
(shore A) |
(Mpa) |
at Break (%) |
STRENGTH (KN/m) |
Range (°C) |
|
|
| ECS |
60T/15KN |
Black |
1.25±0.05 |
60±5 |
>5 |
>350 |
>15 |
-50~200 |
1~20 |
1~1.5 |
OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST
Available in thicknesses: 1mm to 25mm
1mm to 6mm - Rolls: 1000mm -1200mm-2000mm wide x 10-20 meters long
8mm & 10mm – Rolls: 1000mm-1200mm wide x 5-10 meters long
Over 10mm thickness-Plates : 2500mm x 1000-2000 mm
Information of a technical nature is based on laboratory tests which either Meridian conducts or sends to an independent laboratory for testing for determination of uses as requested in writing by customer. Meridian believes these to be reliable. However, Meridian has no control over the application of the material to, or part of, the final product and therefore, Meridian makes no express or implied warranty of result, fitness or merchantability. The customer should determine reliability for the end use or particular application.
